BMG extruder

Item No.: BMG extruder

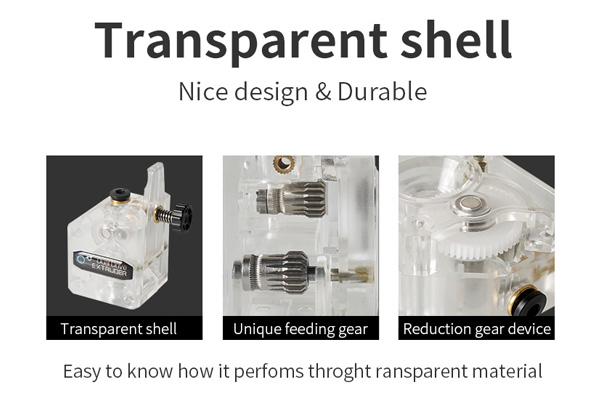

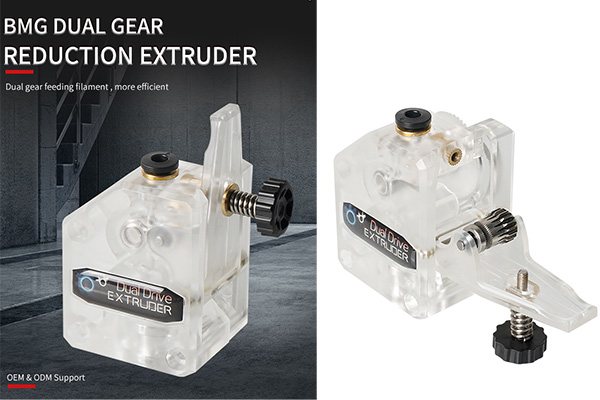

BMG extruder is a core parts for 3d printer.  It is lightweight, compact, and powerful dual-drive extruder that excels in direct drive.
The BMG features a 3:1 gear ratio, the perfect combination of speed for high flow applications and precision for tine-
Description Review
Description


BMG Extruder Technical Specifications



Filament diameter: 1.75mm
Compatible Motor: Nema17
Compatible Motor Shaft Diameter: 5 mm
Gear Ratio:3:1
Weight:75G
Output compatibility: Groove Mount
Filaments type support: Nylons, TPU, PLA, ABS.








BMG Extruder Features

Adjustable tension
The manual adjustment screw allows the user to set the pressure exerted between the two transmission gears of the filament. The user can choose the pressure according to their preferences and the material they want to use.

Quick changes

The BMG has an easily accessible lever that simply presses it to release the tension between the gears and the filament. This causes the filament change to take place in a matter of seconds.

Optimised design

This extruder is optimized for the Mosquito / Mosquito Magnum Hotends with integrated torque-lock system. The assembly of the Hotend is simple, safe and wobble-free with only two screws.
